The anti-static dust removal filter adopts polyester fiber without anti cloth surface covered with metal aluminum coating, which has anti-static and explosion-proof effects on metal dust and flammable dust, and also has the effect of easy and rapid dust removal.
Characteristic:
Equipped with anti-static and explosion-proof functions
Filtering accuracy 3-5 microns (can be adjusted from 0.1-10 microns according to customer needs) Operating temperature ≤ 65 ℃
General application:
Industrial dust collector
Painting and powder spraying equipment
Environmental dust removal equipment
Supporting facilities for major host manufacturers

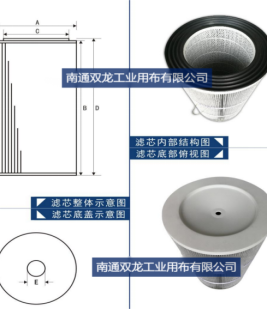

Common specifications and sizes:
型号 | A外径 | B高度 | C内径 | D总高度 | E下盖内径 | S过滤面积 |
CWLGDZ-3260 | 325 | 600 | 220 | 610 | 0 | 5-12 |
CWLGDZ-3266 | 325 | 660 | 220 | 670 | 0 | 6-14 |
CWLGDZ-3290 | 325 | 900 | 220 | 910 | 0 | 7-18 |
CWLGDZ-32120 | 325 | 1200 | 220 | 1210 | 0 | 9-24 |
CWLGDZ-3560 | 350 | 600 | 240 | 610 | 0 | 6-13 |
CWLGDZ-3566 | 350 | 660 | 240 | 670 | 0 | 7-15 |
